100-512 MHz – MPMP100X5 (1Y02250)

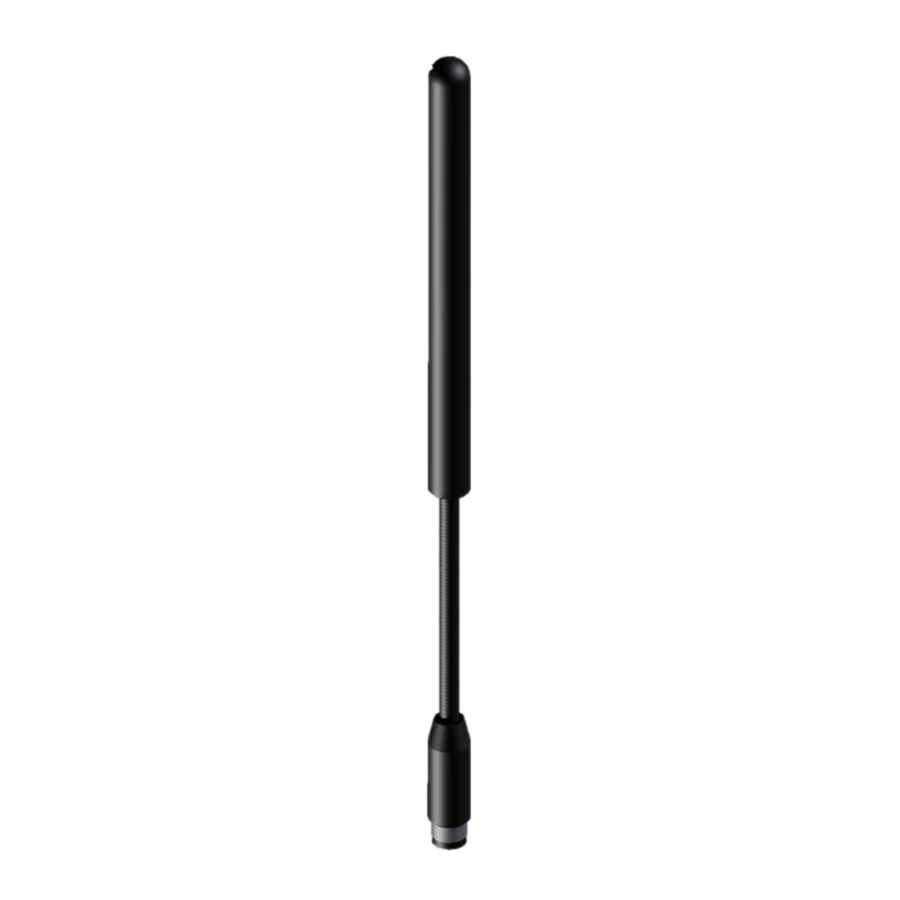

The MPMP100X5 broadband monopole antenna is designed to be used in military manpack, commercial, and other applications where reliability is needed most. This antenna works with all radios within the 100-512 MHz band.

  • Robust Construction
  • 0° – 180° Adjustment via Gooseneck Flexible Section
  • Low VSWR
  • Broadband

ELECTRICAL:

  •  Frequency Range: 100-512 MHz
  •  Gain: -4.0 dBi @ 100 MHz
  •  -2.0 dBi @ 225 MHz
  •  0.0 dBi @ 512 MHz
  •  VSWR: 3.5:1 Max @ 100-512 MHz
  •  2.5:1 Max @ 225-450 MHz
  •  Input Impedance: 50 Ω Nominal
  •  Power: 16 Watts
  •  Polarization: Vertical
  •  Radiation Pattern: Azimuth: 360°
  •  Elevation: 90°
  •  Input Connector: TNC Male

MECHANICAL:

  •  Overall Height: 20 in. (0.51 m)
  •  Net Weight: 0.63 lb. (0.28 kg)
  •  Color: Black/Green/Tan/Grey
  •  Mounting: TNC Male
