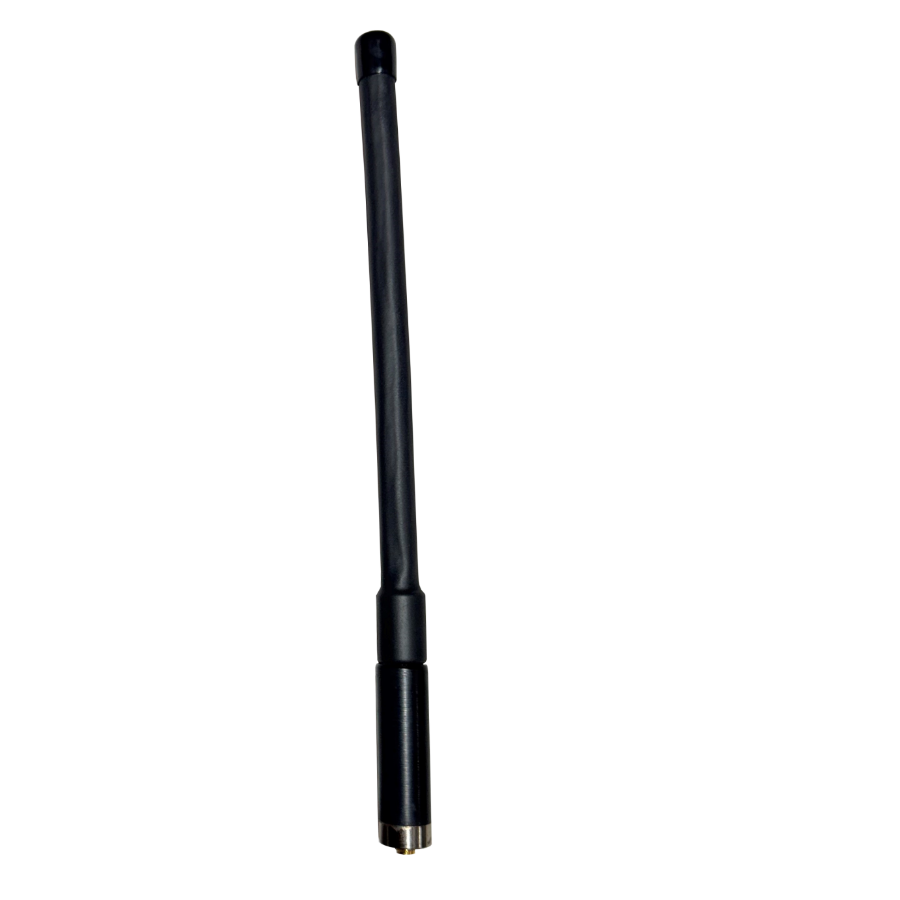

Handheld Tri-band Antenna
136-174/380-520/762-816 MHz (1Y54850D) MPMP150-450-816AE
The MPMP150-450-816AE is a handheld full spectrum multiband VHF, UHF, 700/800/900MHz antenna designed for today’s latest P25 Land Mobile Radios (LMR) for maritime, military, commercial, public safety, and law enforcement applications. This antenna is designed to provide maximum performance and reliability for all radios that use a TNC (M) connector.
Features
- Increased Performance
- Foldable Radiator
- Robust construction
| Electrical Specifications | |
| Frequency |
136-174 MHz 380-520 MHz 762-870 MHz
|
| Polarization | Vertical |
| Impedance | 50 Ω Nominal |
| VSWR | 3:1 Max, 2:1 Typical |
| Gain | See Gain Comparison Chart |
| Radiation Pattern | Azimuth 360° |
| Power | 10 Watts |
| Connector | TNC (M) |
| Mechanical Specifications | |
| Design | Monopole |
| Weight | 3.1 oz (88 grams) |
| Height | 12.5 in. (317.5 mm) |
| Mount | TNC (M) |
| Color | Black |
