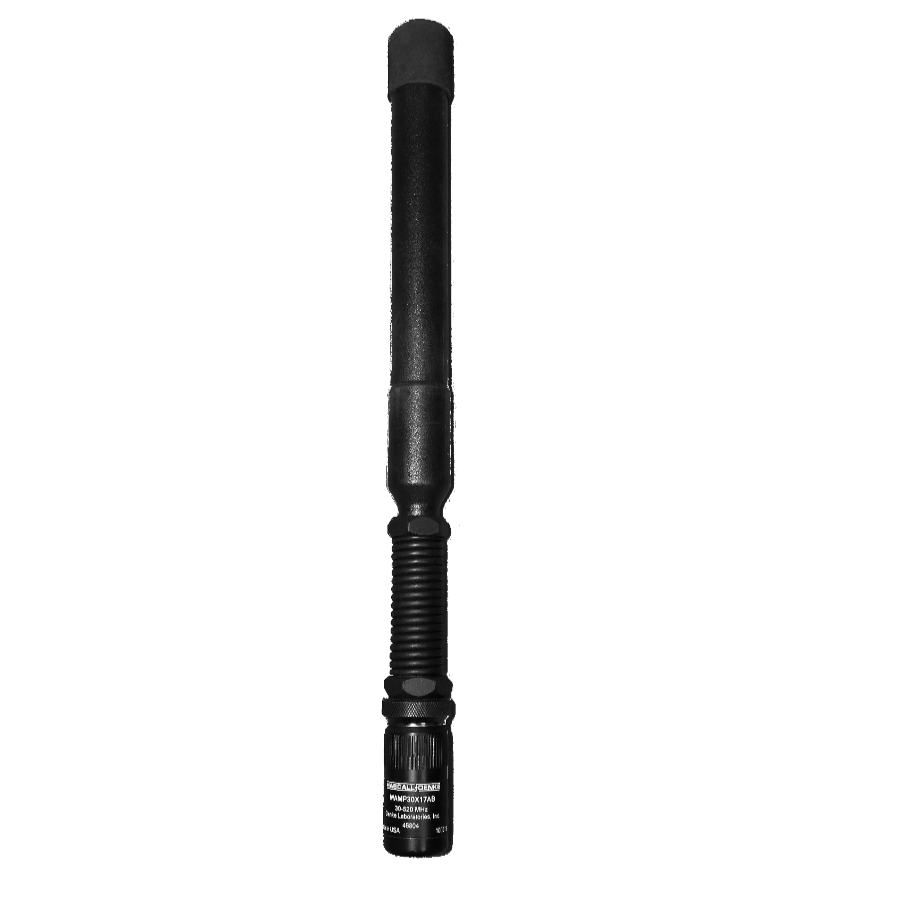

Broadband Vehicular |Marine Antenna

30-520 MHz MAMP30X17AB (1Y27450)

The MAMP30X17AB broadband monopole antenna is designed to be used in military or commercial, vehicular or marine applications where low profile and reliability are needed most. This antenna works with all radios within the 30-520 MHz band with a VSWR of less than 2.5:1. The base of the antenna is reinforced for rough handling

Compatible with all mounts using PSC-5 type connectors
 Hascall-Denke mounts available are: HDM006 Roof Mount, MM003 Magnetic Mount and UM0014 Trunk Lid Mount
 Antennas and mounts available with type “N” Connectors.

    ELECTRICAL:

    • Frequency Range: 30-512 MHz
    • Gain:
      • -30dBi Peak @ 30 MHz
      • -2 dBi @ 125-512 MHz
      • 0 dBi @ 225-400 MHz
    • VSWR: < .25:1 Typical, 2.5:1 Maximum
    • Input Impedance: 50 Ω Nominal
    • Power: 35 Watts
    • Polarization: Vertical
    • Radiation Pattern: Azimuth: 360° Elevation: 90°
    • Input Connector: PSC-5

    MECHANICAL:

    • Overall Height: 17.5 in. (0.44 m)
    • Net Weight: 1.5 lb. (0.52 kg)
    • Color: Black
    • Mounting: PSC-5
